Sausage Processing L

Sausage Processing Line

Your Current Location ： Home Products Sausage Processing Line

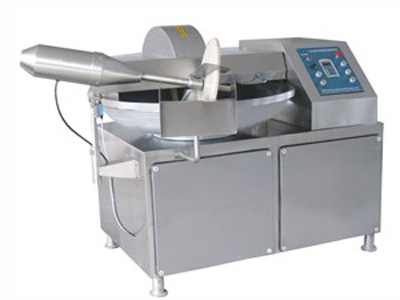

Chopping machine

Details ： Chopper chopping machine use the high-speed rotating chopping action, will cut into the meat or meat mess and accessories, you can also stir together materials, borneol, water and meat or meat. I produced a knife chopping machine speed, the gap pan speed, chopper and chop the pot, chop chop knife blade knife material and designed for the best combination of hardness and other sophisticated technology, to ensure that the meat chopping fineness of the material is good , a small degree of warming, chopping a short time, to improve the emulsifying effect of meat, flexibility, sophistication and production rate. Depending on the needs of users, the company's chopping machine model is complete, simple, safe and reliable.
Purpose:
Meat chopping machine is the key equipment in the production process, high-speed rotation of the chopping knife to cut raw meat minced Bancheng delicate, while the other accessories stir, meat processing plants and other units are indispensable meat processing machinery.

Model	ZB-20	ZB-40	GZB-80	ZB-80 (frequency)	ZB125 (frequency)
Production capacity (pan)	15	30	60	60	90
Power	4.1	4.4	13.98	10.98	13.98
Cut the number of knives (film)	3	3	6	6	6
Chopper revolutions	1480/2960	1480/2960	1480/3600	Frequency Control 500-3500	Frequency Control 500-3500 Two-speed 1800/3600 (Frequency control 500-3600)
Chopped pot speed	9r/min	11	12/16	12/16	9/13
Host size	780×600×850	1100×830×1080	1820×1380×1260	1820×1380×1260	2020×1450×1300
Total weight (kg)	200	400	800	800	1200
Power supply voltage (V)	380V（50Hz） Phase four-wire	380V（50Hz） Phase four-wire	380V（50Hz） Phase four-wire	380V（50Hz） Phase four-wire	380V（50Hz） Phase four-wire
