Sausage Processing Line

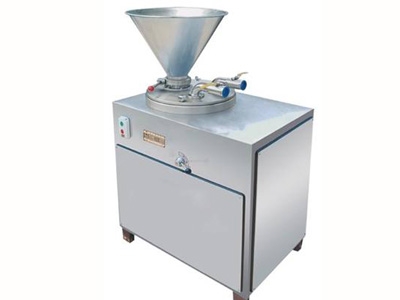

Hydraulic sausage
Hydraulic sausage is processed intestinal type products necessary equipment, irrigation system can be large, medium and small intestine variety of products. This machine appearance, workmanship, easy to operate, safe and reliable. Machine hoppers, valves, enema tube and packaging machine are made of stainless steel, in line with food hygiene requirements.
No special power, and power, the use of human handwheel, push the piston through the screw, and then squeeze the meat into the casing material, complete intestinal type products perfusion. Easy to operate. High efficiency, easy to clean.
Hydraulic sausage mainly consists of frame, hopper, cylinder, cylinder, hydraulic operating systems and electrical systems. By manipulating the control valve manually transfer the reciprocating movement of the piston. Completion of the suction and squeeze the material. Achieve continuous enema purposes.
|
Model |
Production capacity (Ci / kg) |
Hopper Capacity |
Power (kw) |
Filling range (Q) |
Dimensions (mm) |
Total Weight (kg) |
|
YG-30 |
200-300 |
30L |
1.5 |
12-48 |
1050*670*1680 |
360 |
|
YG-50 |
300-500 |
50L |
1.5 |
12-48 |
1150*700*1760 |
450 |
|
