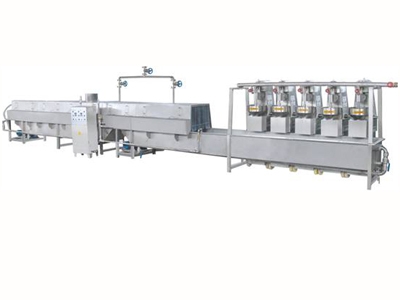

Meatball Forming Line
Pipeline cooking meatballs
The water tank is formed by molding hot water circulating pump , make meatballs from the meatball machine out into the water after the beginning of the end of the molding groove flow , the flow process by adjusting the flow rate control valve to control the water flow rate meatballs , the purpose of making meatballs to achieve the desired shape state.
After forming the balls need to move further in the cooking tank by the rotation of the cooking plate at a constant rate to the allocated end of the digester tank . Meatball desired cooking time can be of different varieties controlled by adjusting the speed dial plate , so cooked meatballs reach state . The cooking vessel by a chain drive to the ball cooling tank , meatballs be rapidly cooled in a cooling tank , the cooling water tank open , i.e. water overflow into the cold water tank has reached the cooling temperature is always 20 degrees -25 degrees. After cooling tank cooling meatballs directly into a plate of frozen ice hanging plant , or with frozen tunnel ( IQF machine ) connections.
The machine adopts SUS304 stainless steel, in line with national food hygiene requirements. All controlled by the inverter drive system , the operation simple and safe , truly automated production meatballs . Greatly reducing the labor intensity, save labor , reduce production costs , increase productivity, eliminate the food production process of many accidents due to human factors mass produced .
|
Technical parameters |
|||
|
Model |
HGL-4 |
HGL-6 |
HGL-8 |
|
Power |
2.77 |
2.77 |
3.12 |
|
Can be equipped with meatballs |
4 |
6 |
8 |
|
Material |
Stainless steel |
Stainless steel |
Stainless steel |
|
Yield |
4-6 |
8-10 |
12-14 |
|
Power supply |
380/50 |
380/50 |
380/50 |
|
Transmission |
Frequency stepless speed / PLC control |
Frequency stepless speed / PLC control |
Frequency stepless speed / PLC control |
|
Dimensions |
12000x900x10902.77 |
142000x900x1090 |
15700x900x1090 |
Can be customized matching lines 4, 6, 8, 10 ball machines according to customer demand
|
