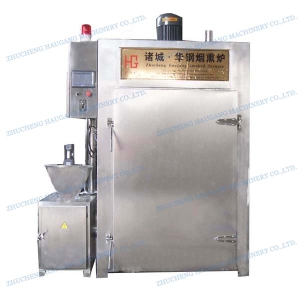

200 models of steam / electric dual- smoked furnace
China Steel Series YX-200 smoked furnace can be customized as steam, electricity dual heating . Apply for sausage , ham, Sausage , bacon, bacon, chicken , smoked fish , duck and poultry , aquatic products and other smoked products, baking and drying , color molding . Smoked color, good taste better. quality assurance, technical quality , easy to operate. After a nice smoked food color , there is a smoky smell after , not greasy feel , but also to achieve environmental effects , completely replaced the traditional smoked methods.
● The machine has steam heating ( cooking ) / electric heating . Hot air ( drying or baking ) , smoke , exhaust and other functions.
● can be freely combined according to user requirements , to achieve a variety of processing technology for the user at any time.
● steam heating / electric heating temperature, good heating effect of a machine .
● using double stainless steel structure, thick sandwich filled with insulation materials, reduce energy consumption.
● the process parameters ( time, temperature , etc. ) is displayed by the man-machine interface , control, ensuring accurate.
● work completed or halfway machine fails , with automatic alarm function.
● There are two temperature detection ( respectively furnace temperature and product temperature ) .
I. Introduction Structure
The machine is mainly composed of the furnace , heating system, air circulation system , smoke systems, and electronic control systems and other components.
1 , furnace : furnace wall and all internal components are made of stainless steel , corrosion-resistant . The products hanging on the trailer , into the furnace body , closed the door , you can set the process by cooking and other processing parameters .
2 circulating air system : top with two-speed electric furnace blower , high power and high winds make sure the furnace to heat up, so that a uniform temperature throughout , to ensure stable and reliable quality products .
3 fuming system : smoked smoked tank upper part of the furnace sawdust box , the reducer drive stirring mechanism , sawdust periodically send fuming furnace and the lower plate heater , smoke from the power switch on the control box button control , heated sawdust smoke is inhaled , smoked and cooked food in the host fans .
Model |
HGYX-200 steam |
HGYX-200 electric heating |
Productivity (kg) |
200 |
200 |
Total power (kw) |
5.5 |
24.5 |
High pressure (Mpa) |
0.3-0.6 |
|
Low pressure (Mpa) |
0.1-0.2 |
|
Furnace temperature (° C) |
<120 |
<150 |
Water pressure (Mpa) |
0.2 |
|
Standard trailer (mm) |
1000*1000*1380 |
1000*1000*1380 |
Host size (mm) |
1800*1200*2600 |
1800*1200*2600 |
Weight (kg) |
900 |
900 |
