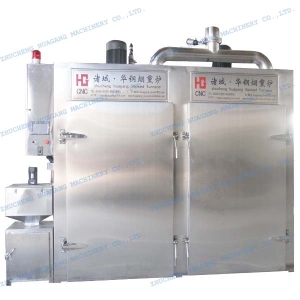

YX-500 -channel , double-door style smoked furnace .
China Stainless Steel Series professional manufacturer smoked smoked stove oven cooked meat products is the key equipment. Be cooking a variety of sausages , ham , dry sausage, sausage , barbecue and a variety of fish. Simple, convenient and reliable.
● The machine adopts the man-machine interface and PLC automatic control, high degree of automation .
● The machine has steam heating ( cooking ) , hot air ( drying or baking ) , smoke , exhaust and other functions.
● can be freely combined according to user requirements , to achieve a variety of processing technology, capable of storing 99 fixed programs available to users at any time.
● steam heating temperature, generally applicable to users of the boiler or steam generator configuration .
● using double stainless steel structure, thick sandwich filled with insulation materials, reduce energy consumption.
● the process parameters ( time, temperature , etc. ) is displayed by the man-machine interface , control, ensuring accurate.
● work completed or halfway machine fails , with automatic alarm function.
● There are two ( four ) temperature sensing probe.
Structure Introduction
The machine is mainly composed of the furnace , heating system, air circulation system , and electric control systems and other components.
1 , furnace : furnace wall and all internal components are made of stainless steel , corrosion-resistant . The products hanging on the trailer , into the furnace body , closed the door , you can set the process by cooking and other processing parameters .
2 | cooking parts: the internal design of the furnace system automatically generates steam for heating furnace products directly . Production of steam can be adjusted depending on the product . Cabinets pressure must not exceed 0. 08Mpa.
2 , circulating air system : Top smoked furnace is equipped with two-speed electric fan, and the amount of wind power to ensure that the furnace to heat up, so that a uniform temperature throughout , to ensure stable and reliable quality products .
3 , fuming system : the upper part of sawdust box , the reducer drive stirring mechanism , sawdust periodically send fuming furnace and the lower plate of the heater , the smoke switch button control , electrical control box sawdust on slow heat burning and smoke is inhaled , smoked and cooked food in the host fans .
4, the electrical control system
Automatic smoke oven electric control part adopts advanced man-machine interface and programmable controllers , automatic control and monitor the various processes . Reliable and easy to operate , waterproof performance . The intelligent control device storage capacity up to 99 programs. Through man-machine interface , you can always understand each processing step , and the time display can be set and actual values of various programming. Values displayed include relative humidity ( % ) , the inside temperature (℃), the processing time ( minutes ) , procedures and procedural steps , the error message .
