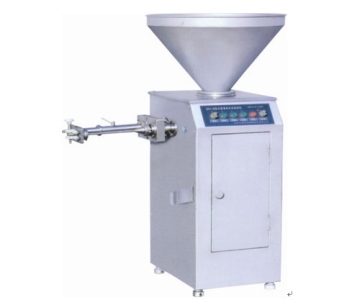

This machine is my factory producing small pieces of meat and filling equipment . Is ideal for the small meat processing equipment production round ham . The device appearance, small size, and packaging and food contact parts made of stainless steel . Easy to clean
Wash , clean , simple , accurate . Quantification can be adjusted between 50-500g, the error is only about 2g, the machine also set up the cleaning process , can easily remove the piston , cleaning, action is more accurate and less prone to failure.
Second, the structure Introduction
The machine is mainly from the feed section , quantitative section , the main cylinder , cylinder, rotary valve cylinder rotation system kink , kink , a portion of the material and other components .
Quantitative some of the major quantitative guides , trimming nuts, hit the block , screw components. Quantification of the number of major adjustments needed adjustment.
Part of the main feed from the hopper , metering cylinder , piston , piston rings, seals, flanges and other components.
Power is fed from the master cylinder gas source , driven by the master cylinder piston rod control feed . At the bottom of the main cylinder of the machine .
Air force from the rotary valve cylinder is used to control the arm , the arm driven rotary valve , turn the valve to control the rotation of the material .
Kink system is mainly powered by compressed air , the linear motion into rotary motion of the cylinder , is transmitted through the sprocket chain kinks , synchronized by synchronizing coupling with the casing so that the tube kinks synchronized reverse.
1 Hopper volume : 35L
2 Working speed 30 times / min
3 minimum filling volume of 10 g / times
4 Maximum filling volume 500 g / times
5 Power : 220V 50VA
6 air pressure 0.5MP
7 Dimensions: Length X width X height = 540X420X1560 (mm)
