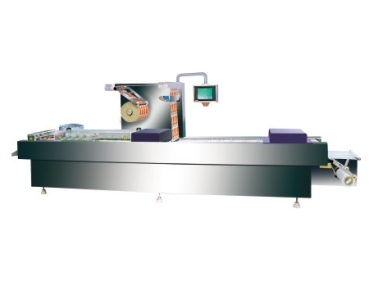

Details ： Since continuous vacuum packaging machine full profile:
      My company DLZ-420, DLZ-520 continuous stretch vacuum packing machines, rewrite the country for 20 years thanks to imported equipment history , completely replace the imported equipment.
Use:
      Suitable for all kinds of food, meat, seafood, fruits and vegetables, pickles, meat , pharmaceutical products , endless components, medical equipment and other vacuum , inflatable packaging.
Features:
1 , optical tracking , optional color covering film or film for packaging, reduce costs and improve product quality.
2, using a combination of mold easy to replace, a multi-purpose machine , the mold with cooling system.
3 , according to the consumer products packaging requirements, with automatic coding system .
4 , according to the requirements of consumers , on the basis of an evacuated , filled with nitrogen gas or a mixed gas can be packaged .
5 , with a world-class original German vacuum pumps , high vacuum , stable quality, durable and reliable.
6 , imported wide open chain, suitable for a variety of soft membrane thickness , subdural and epidural half stretch forming, can be special packaging .
7 , with scrap recycling system , keep the environment clean .
The use of advanced Crosses , vertical knife systems, computer control .
HMI
Imported user interface, you can easily set parameters , alarm display .
Schneider Electric
Panel button applies Schneider Electric products , appearance safe , and reliable.
Original German vacuum pump
The original German oil circulation rotary vane vacuum pumps , flow from 40-300m ³ / h2, ultimate vacuum of 0.5mbar.
Phase protection , phase sequence protection
When the power system phase or phase sequence is reversed, so that the machine can not start , make sure the machine is running in safe condition.
Servo , inverter chain drive system
Japanese original servo or inverter drive system , accurate positioning, safe and reliable.
Leakage protection unique leakage protection features to ensure operator safety.
Control Systems
Japan 's Mitsubishi programmable , GOT1155 type color or F930 touch screen , used Mitsubishi Mitsubishi servo or inverter walking speed , all with Japan, Europe, Taiwan and other electrical appliances. With a sound security measures.
The main technical parameters:
The film width : 393mm;
Next film width : 422mm;
Vacuum degree : ≤ 200pa;
Compressed air : ≥ 0.6mpa;
Cooling water : ≥ 0.15mpa;
Power : 380v/502hz;
Total power : 12kw;
Machine weight : 2100kg;
Dimensions : 5500mmx900mmx1900mm;
